10Tacle Smart IoT Controller

What you'll need

1. Phillips and Small Flathead Screwdrivers
2.Wire Cutters
3.Low Voltage Cables (e.g. 18 Gauge)
4.Ethernet Cables (CAT6)
5.Wire Connectors
6.Working Internet Connection (Ethernet or WiFi)

Whats in the box

10Tacle IOT Controller / 240V Universal Power Adaptor / 1 Screw

10Tacle Smart IoT Controller

IOT Controller

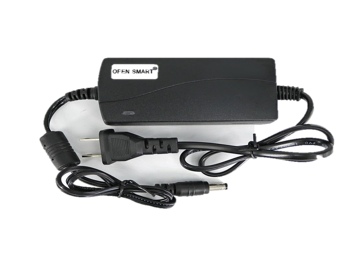

240V Universal Power Adapter

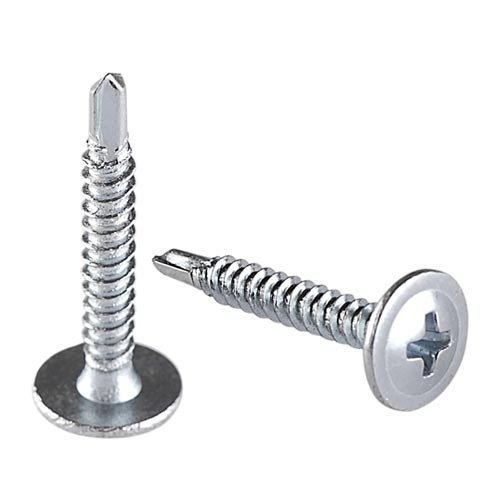

1 Screw

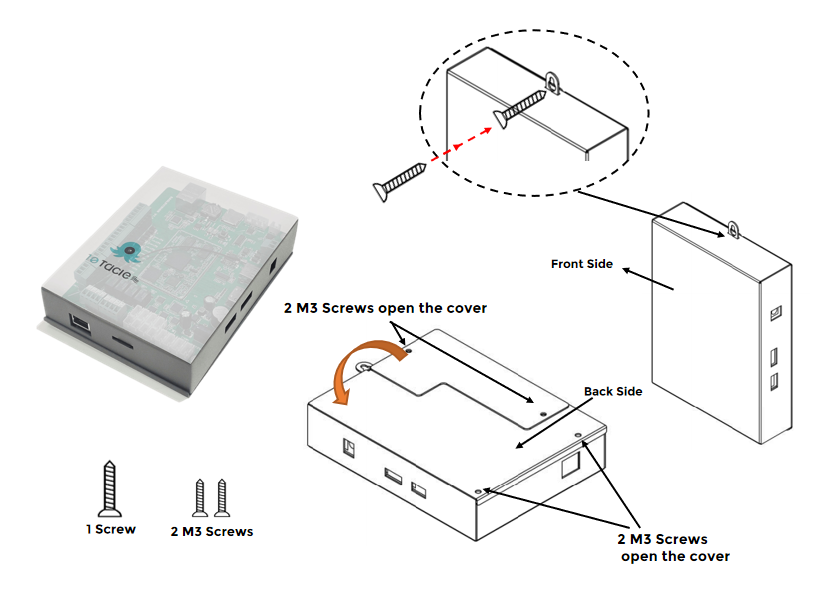

Mounting 10Tacle
IOT Controller 1.0

Using just 1 screw to mount the 10Tacle IOT controller box

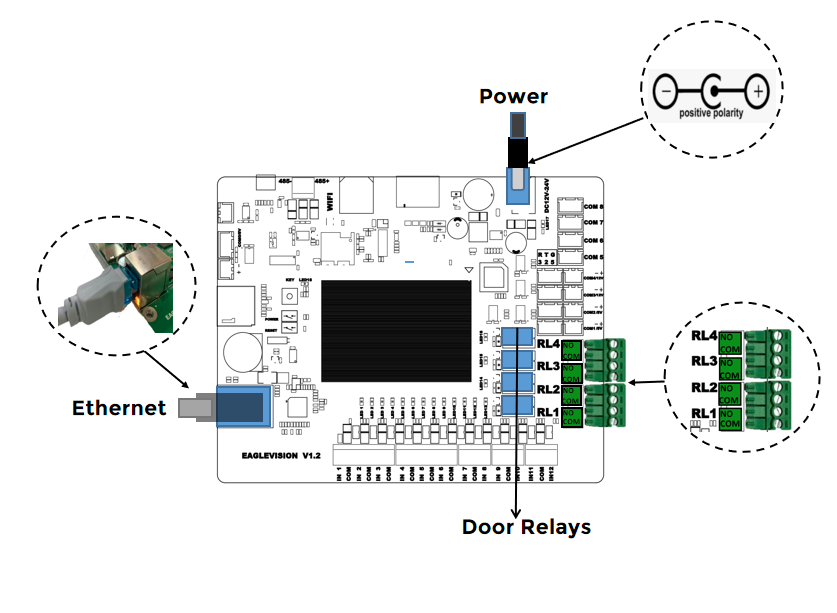

Controller components

Ethernet
Power
I/O Relays

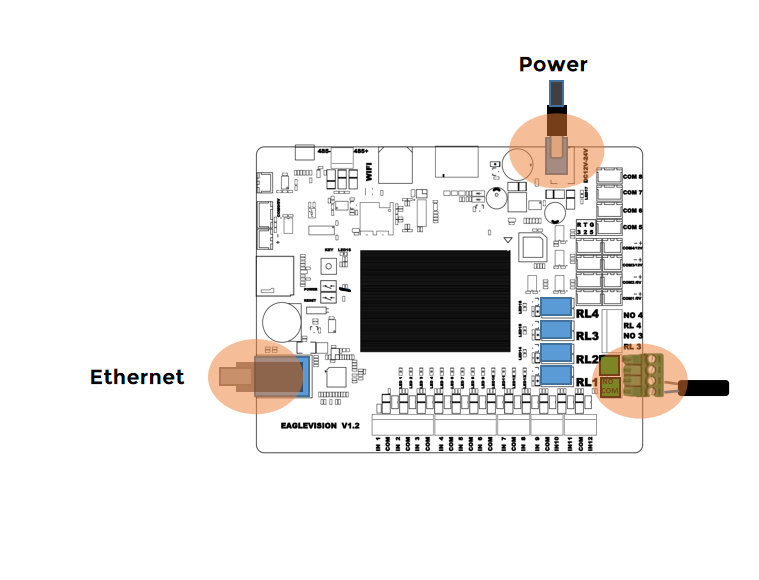

Activating the controller

Power Up
Connect To Internet
Set Up By Web Browser

Support

Thanks for purchasing the
10Tacle IOT Controller 1.0

If things aren’t working correctly or you need assistance, please contact us immediately.

Sincerely, The 10Tacle Krew

Email: support@10tacle.io
https://www.10tacle.io
Tel : +65 8926 4421
